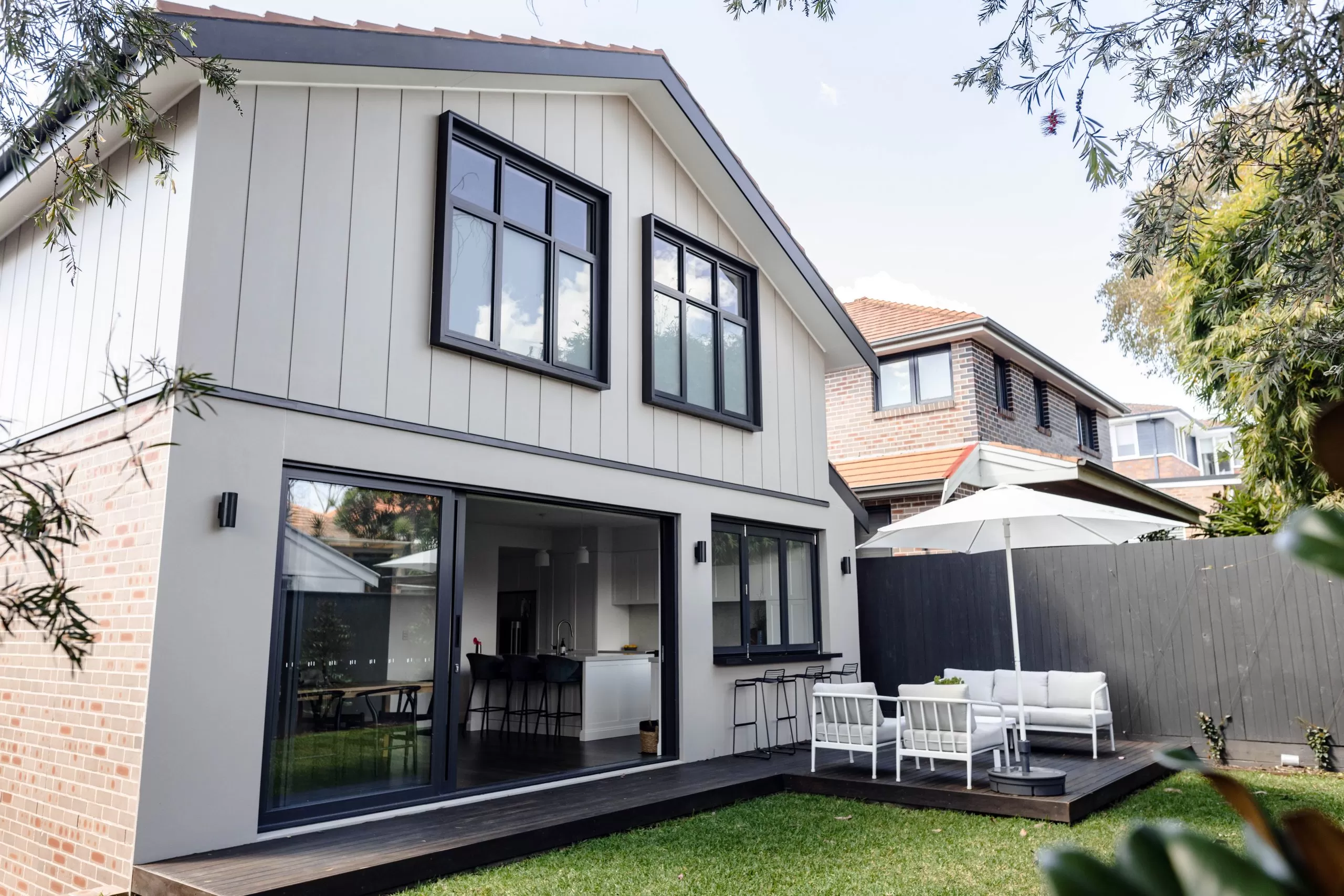

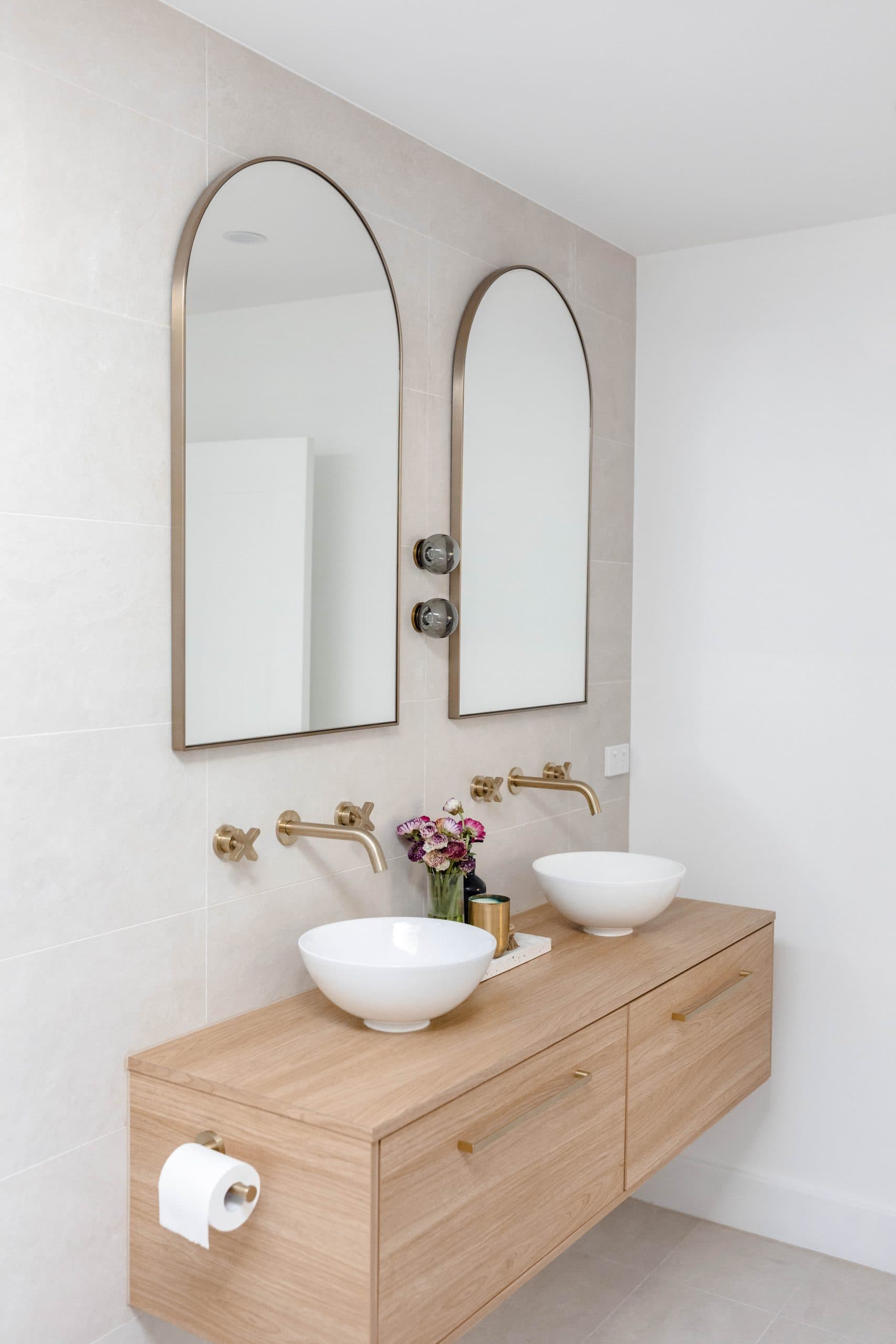

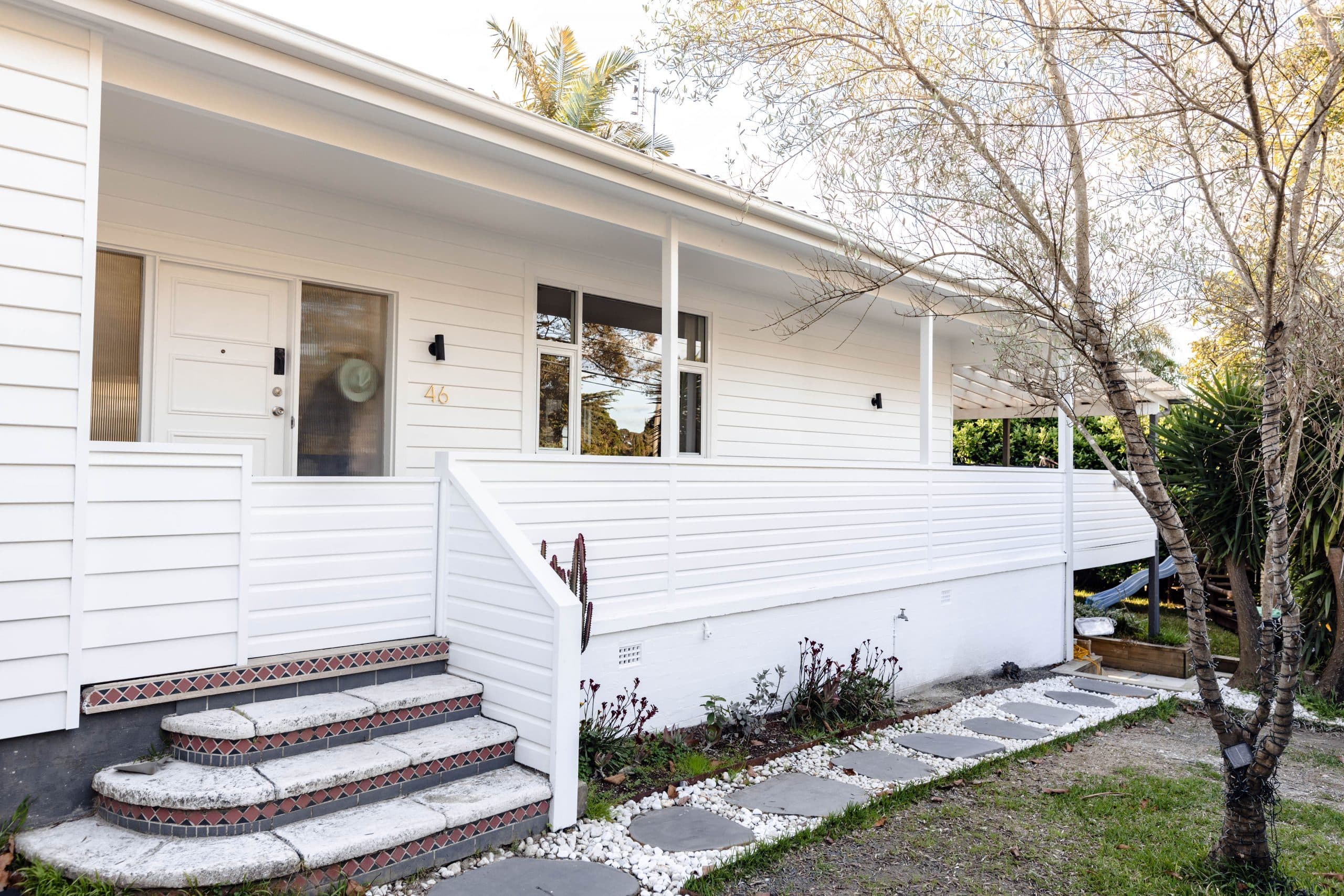

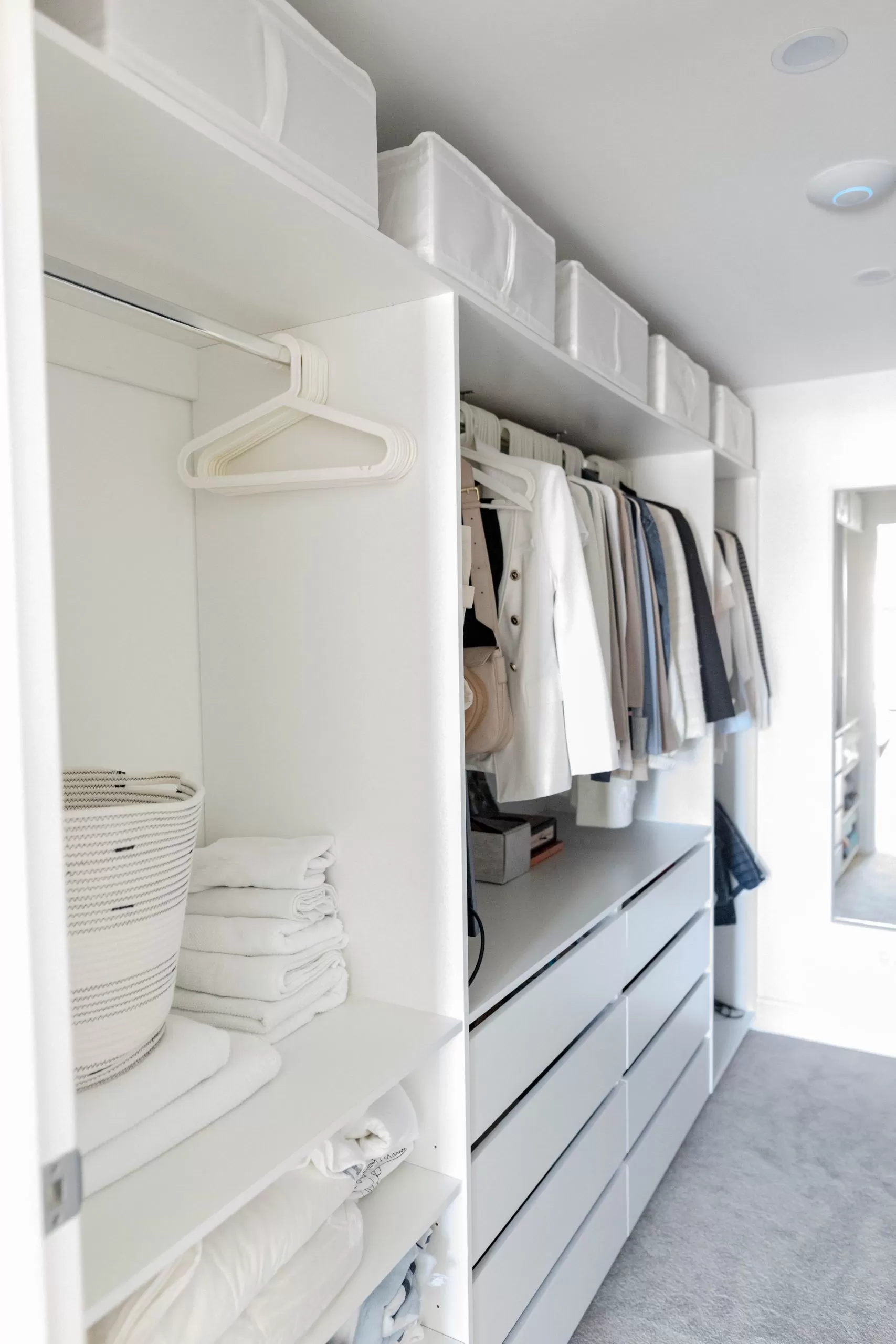

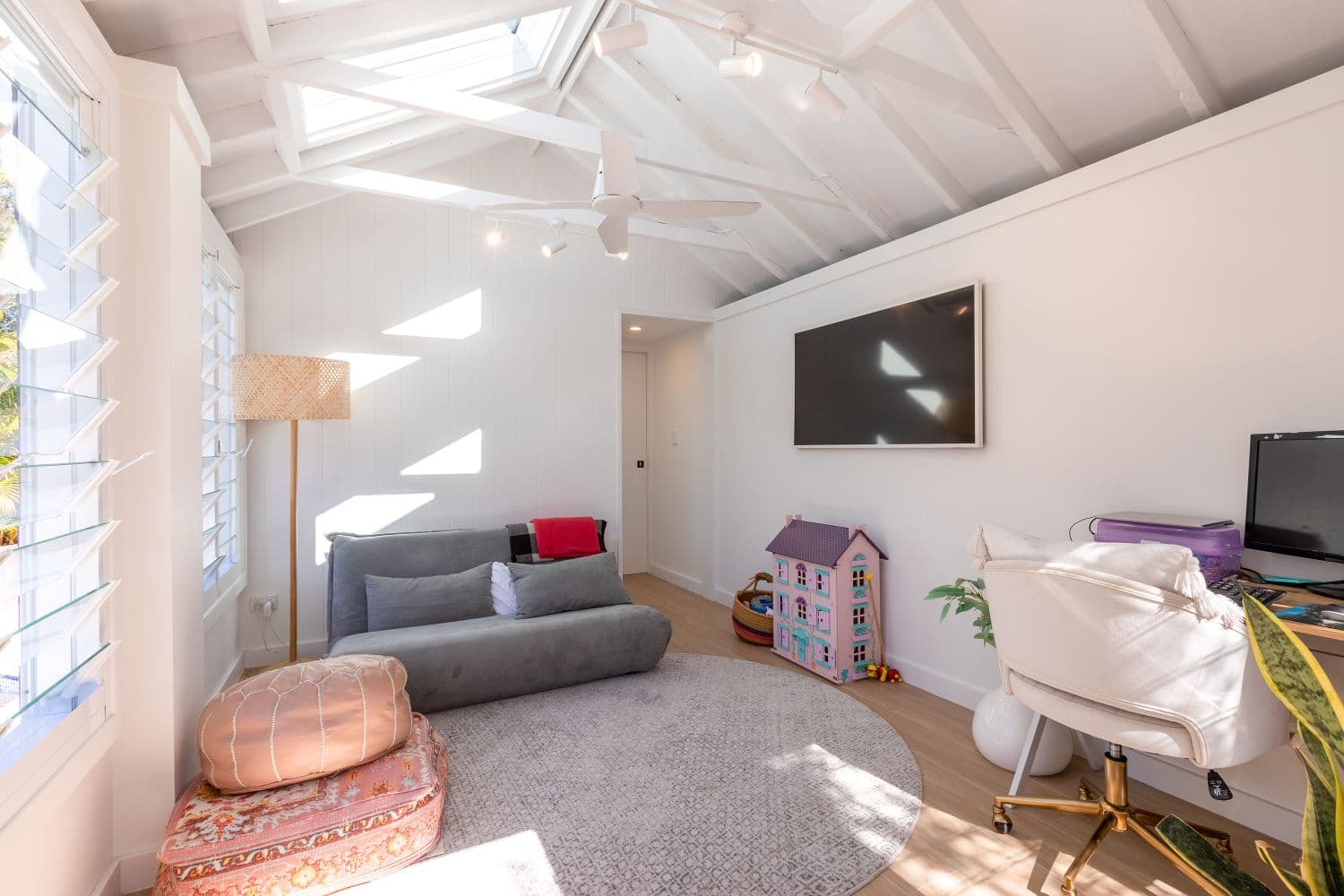

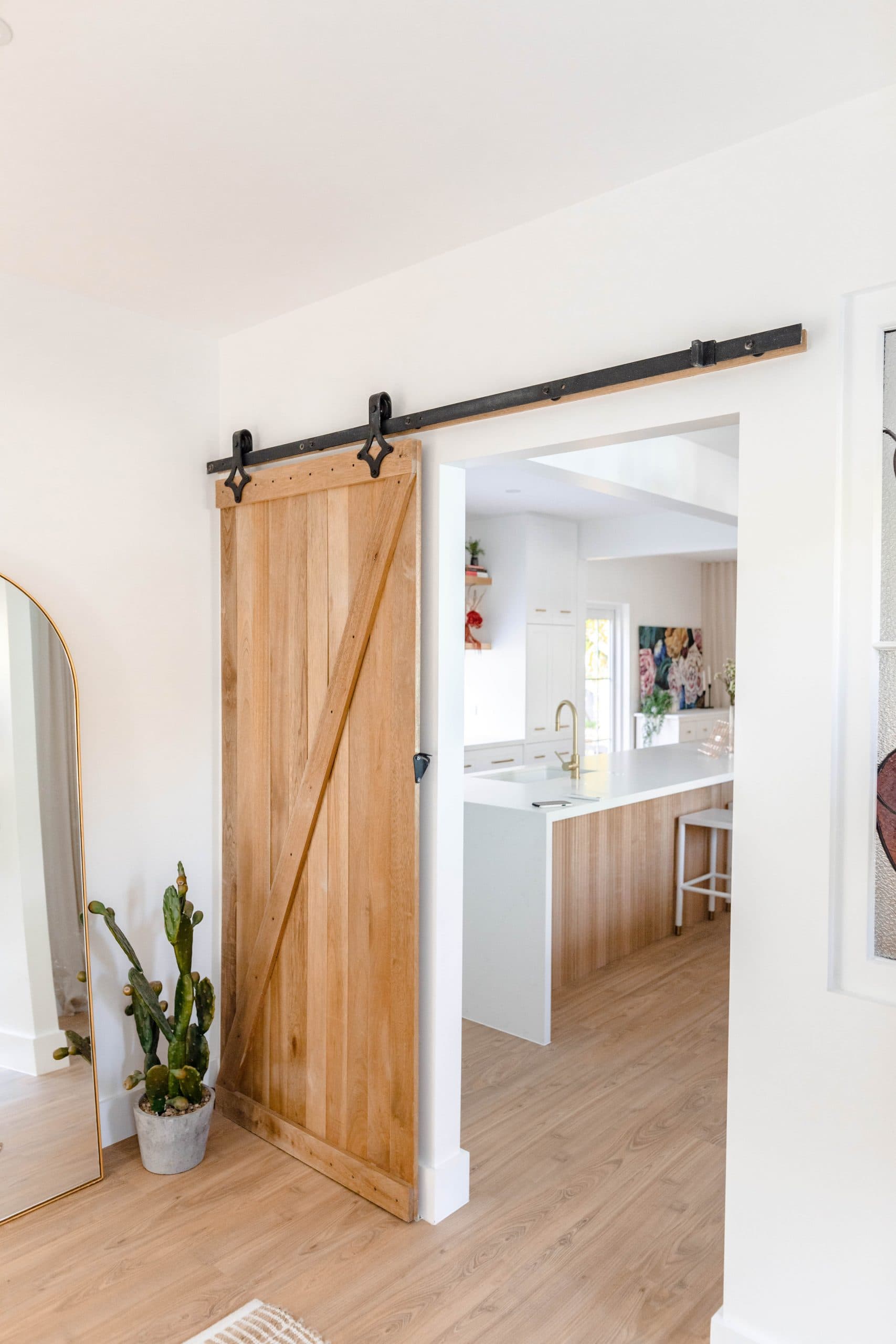

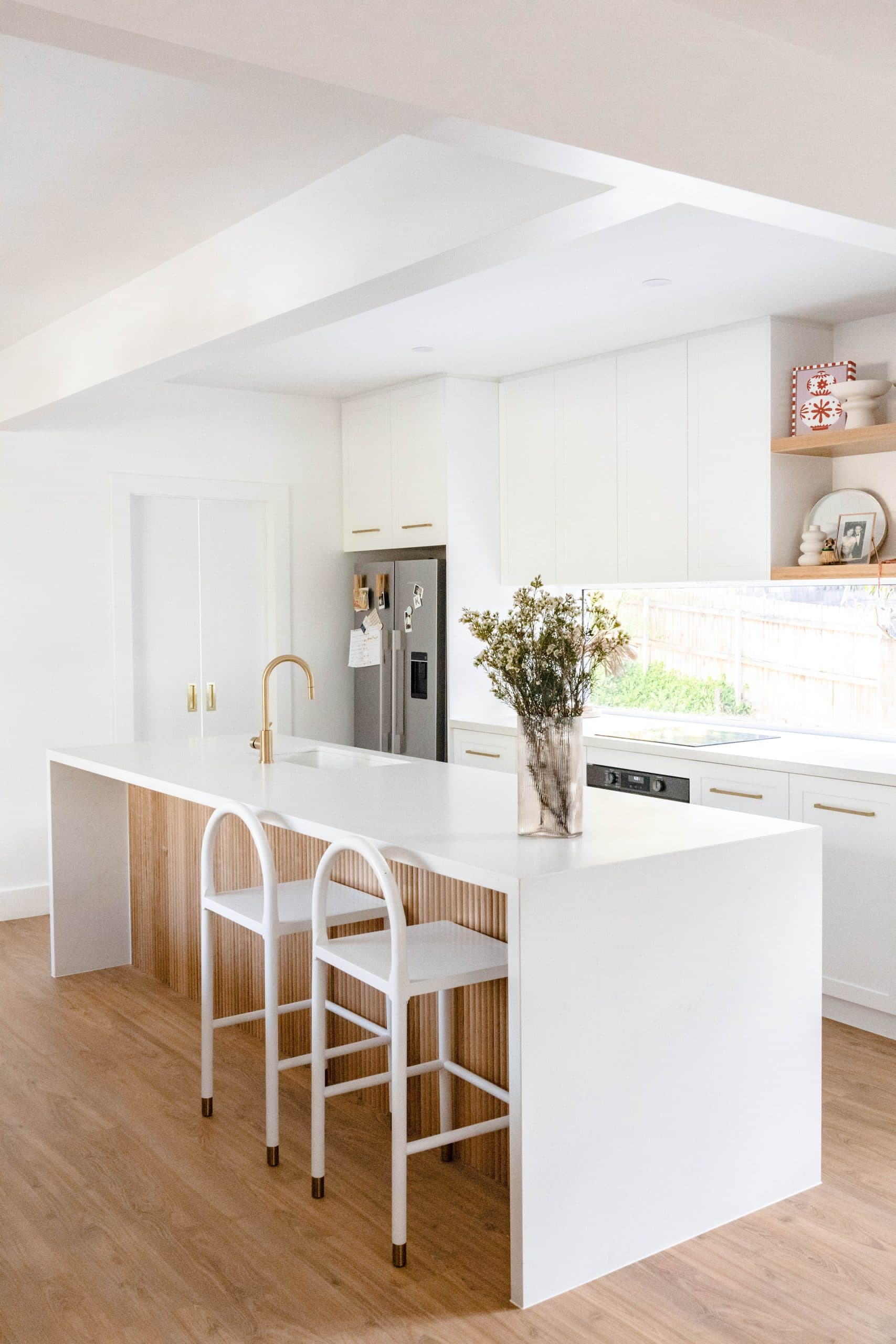

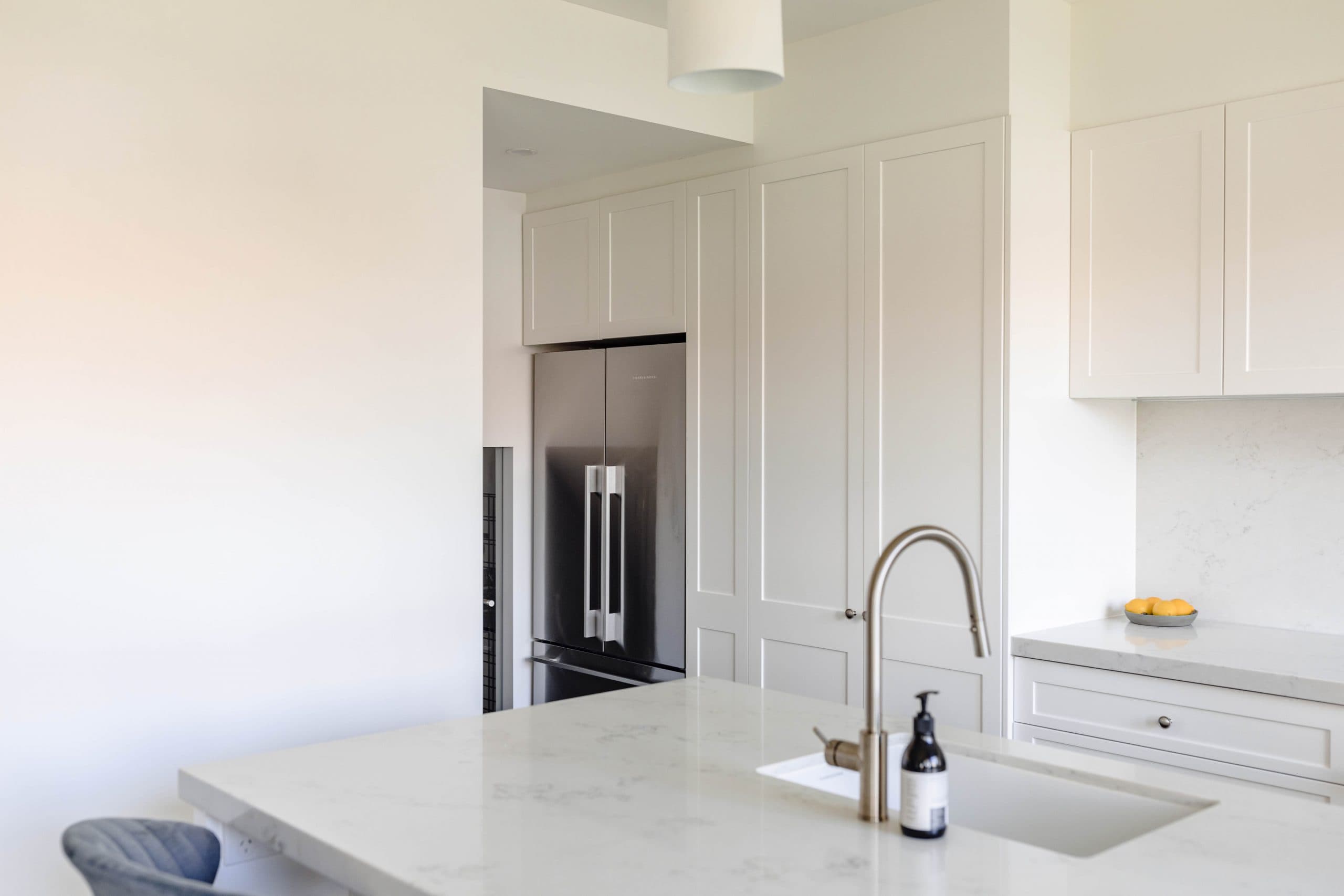

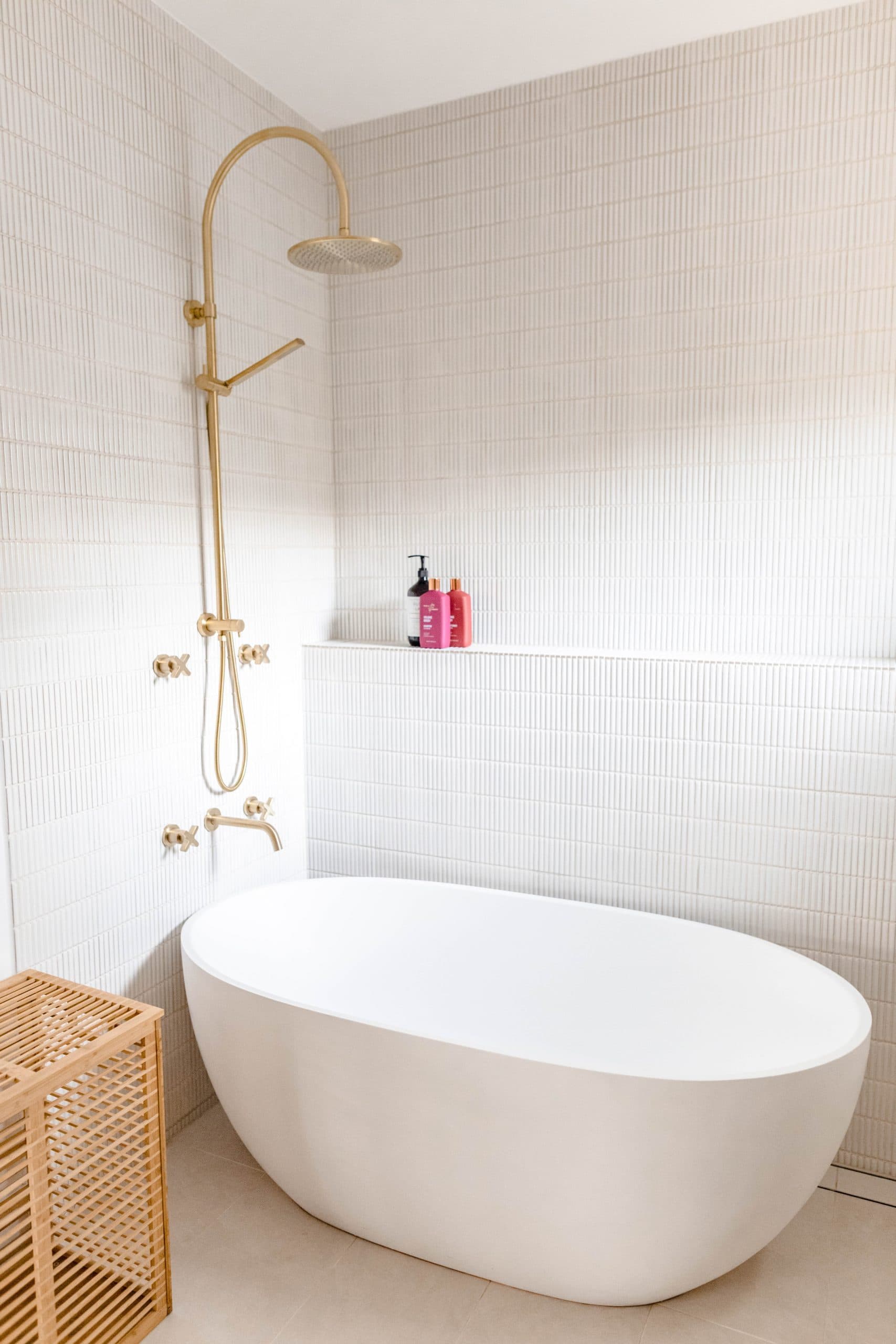

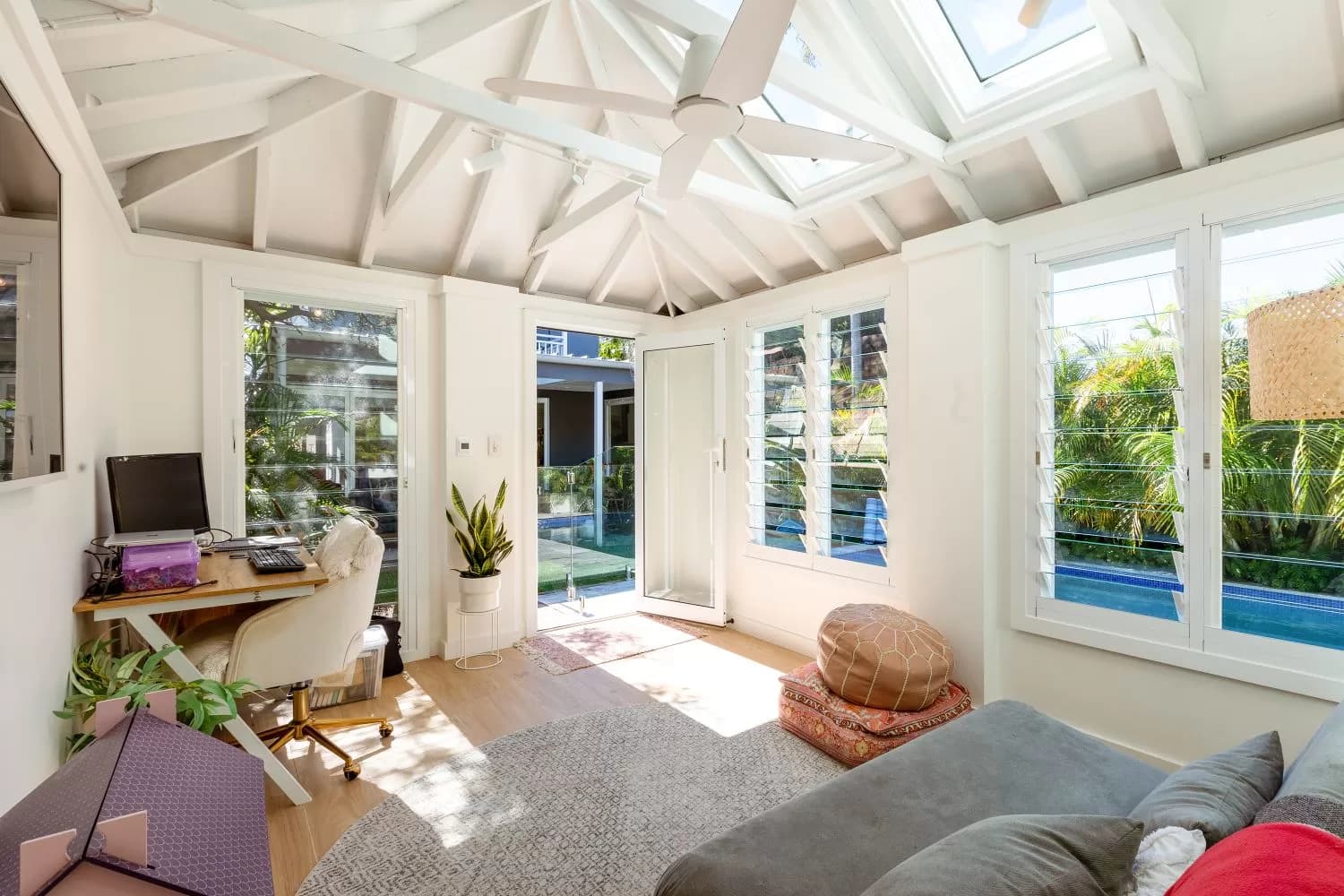

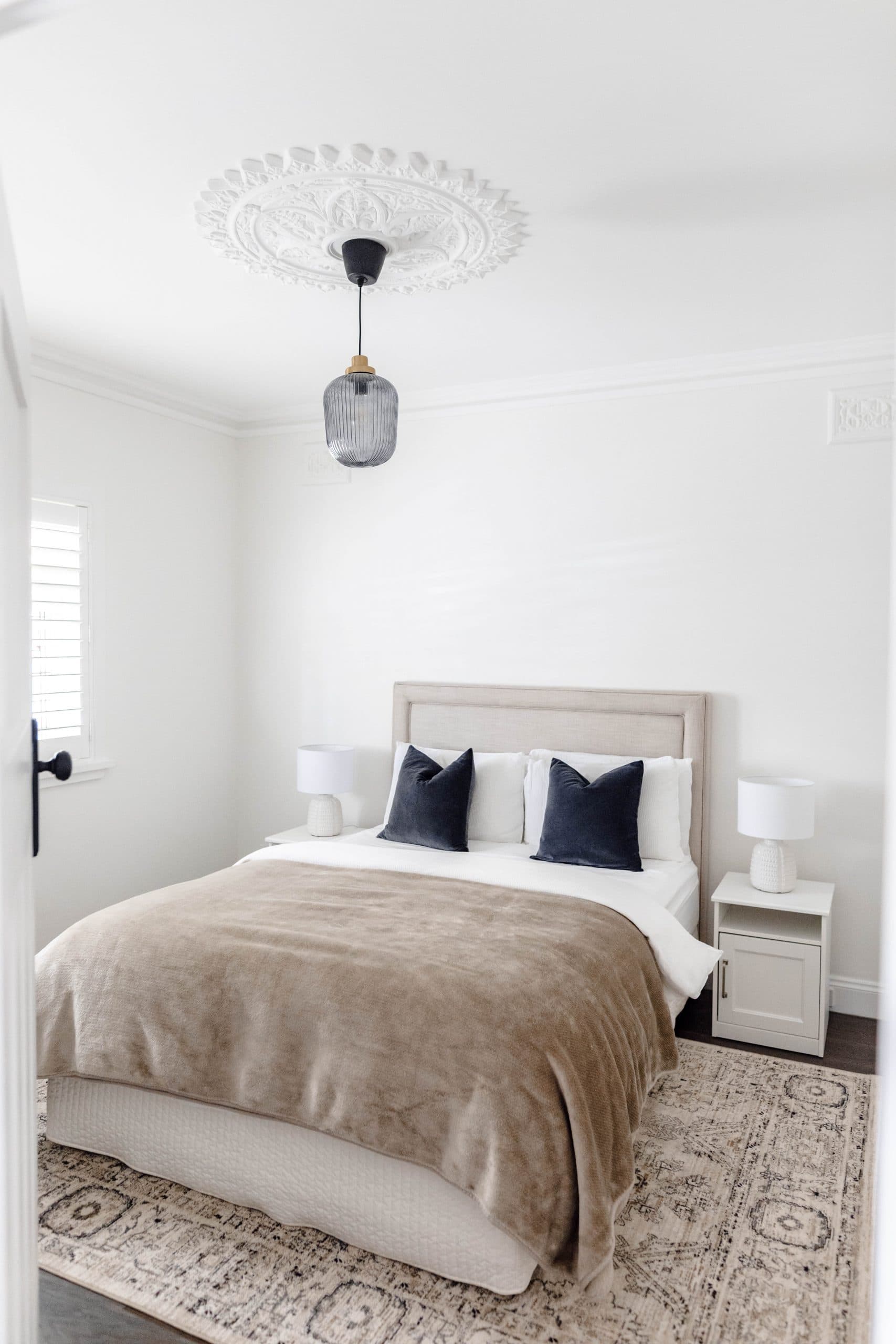

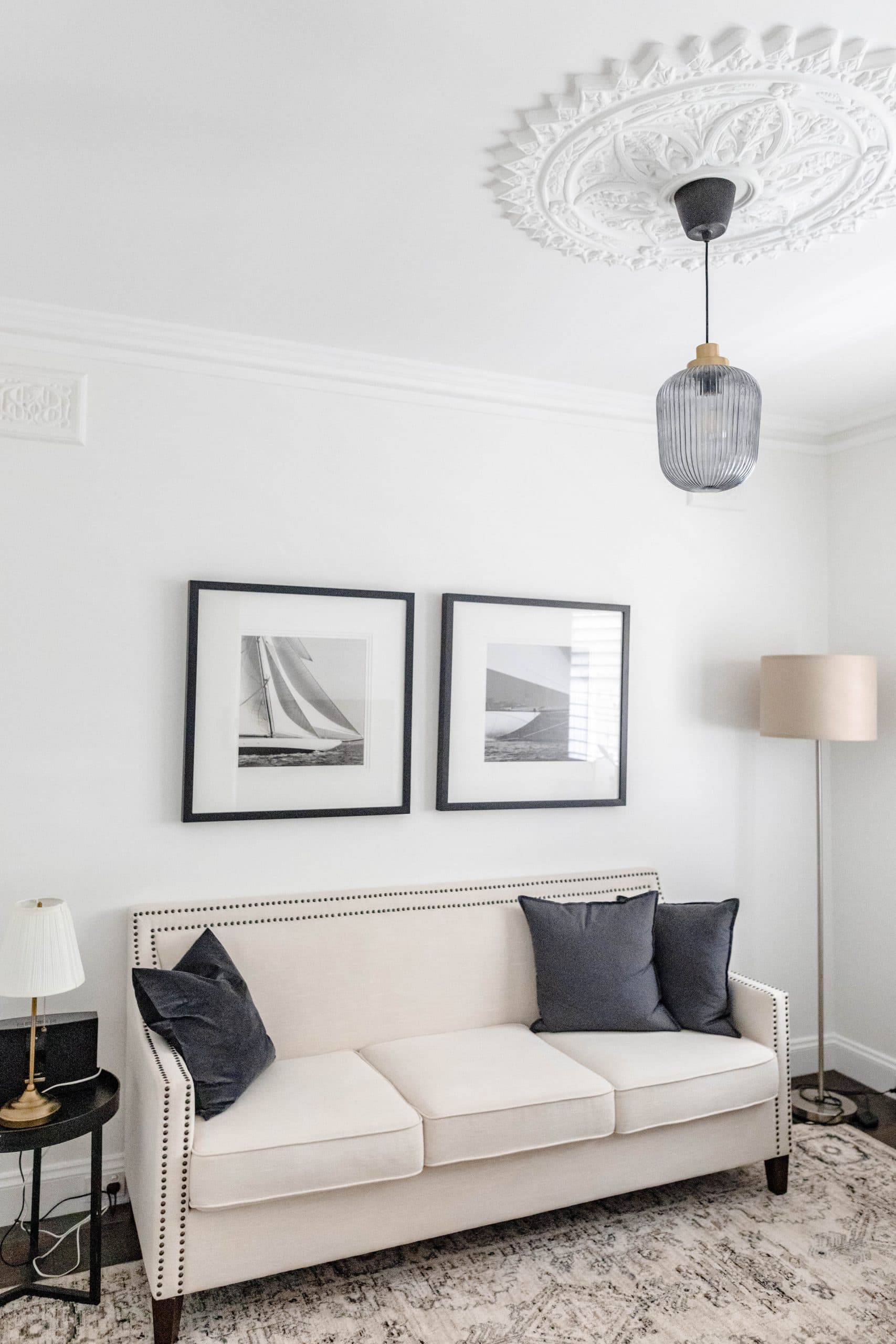

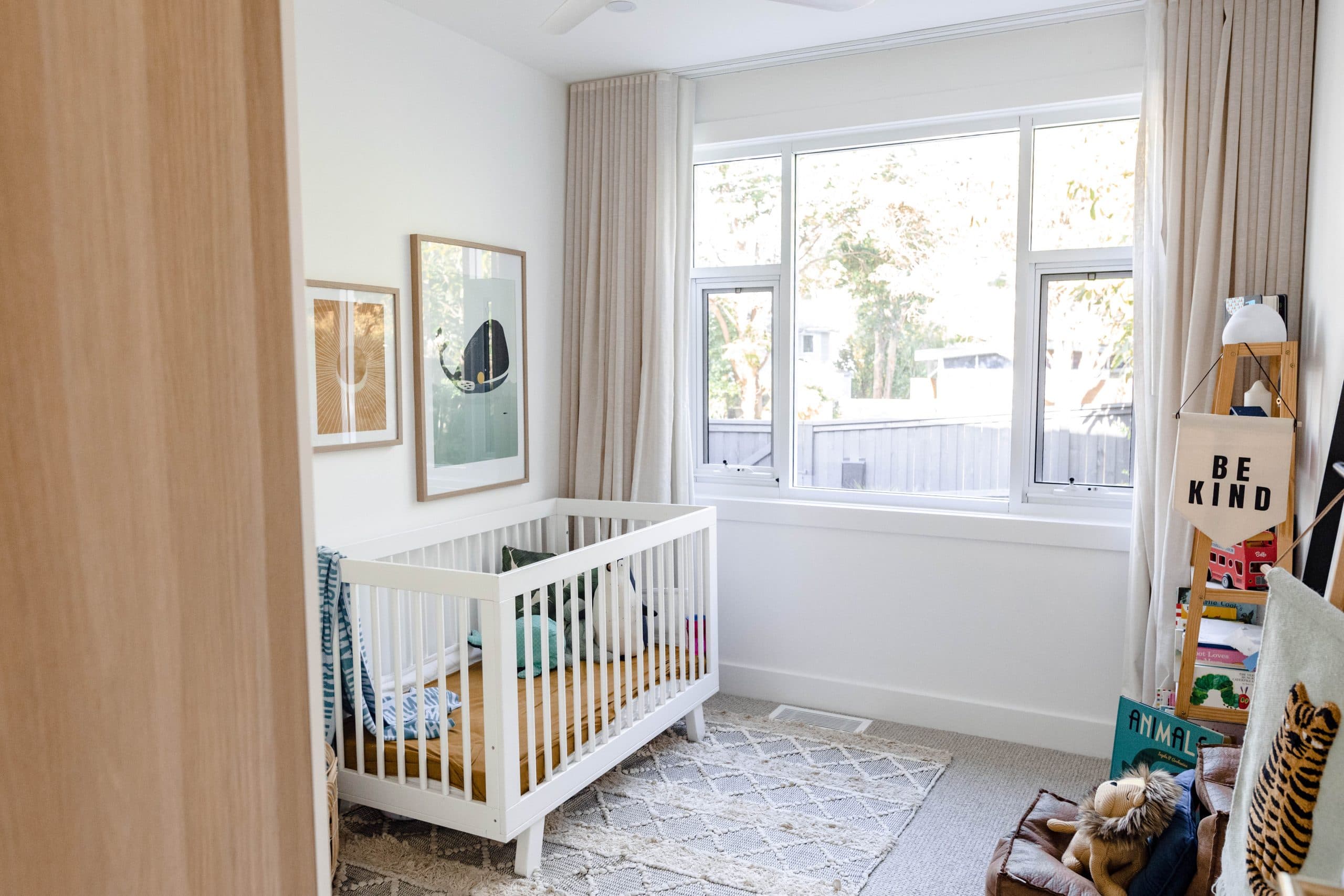

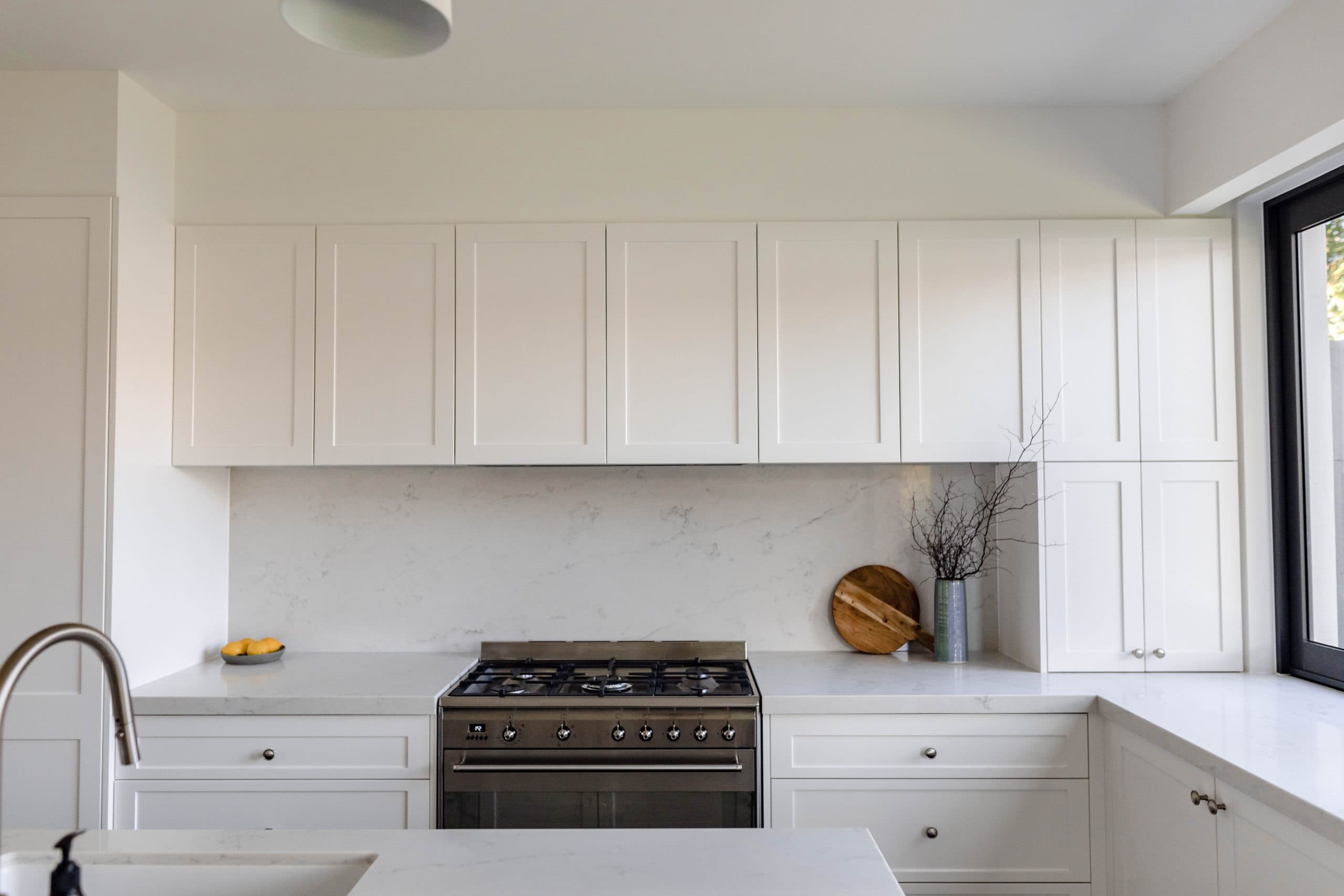

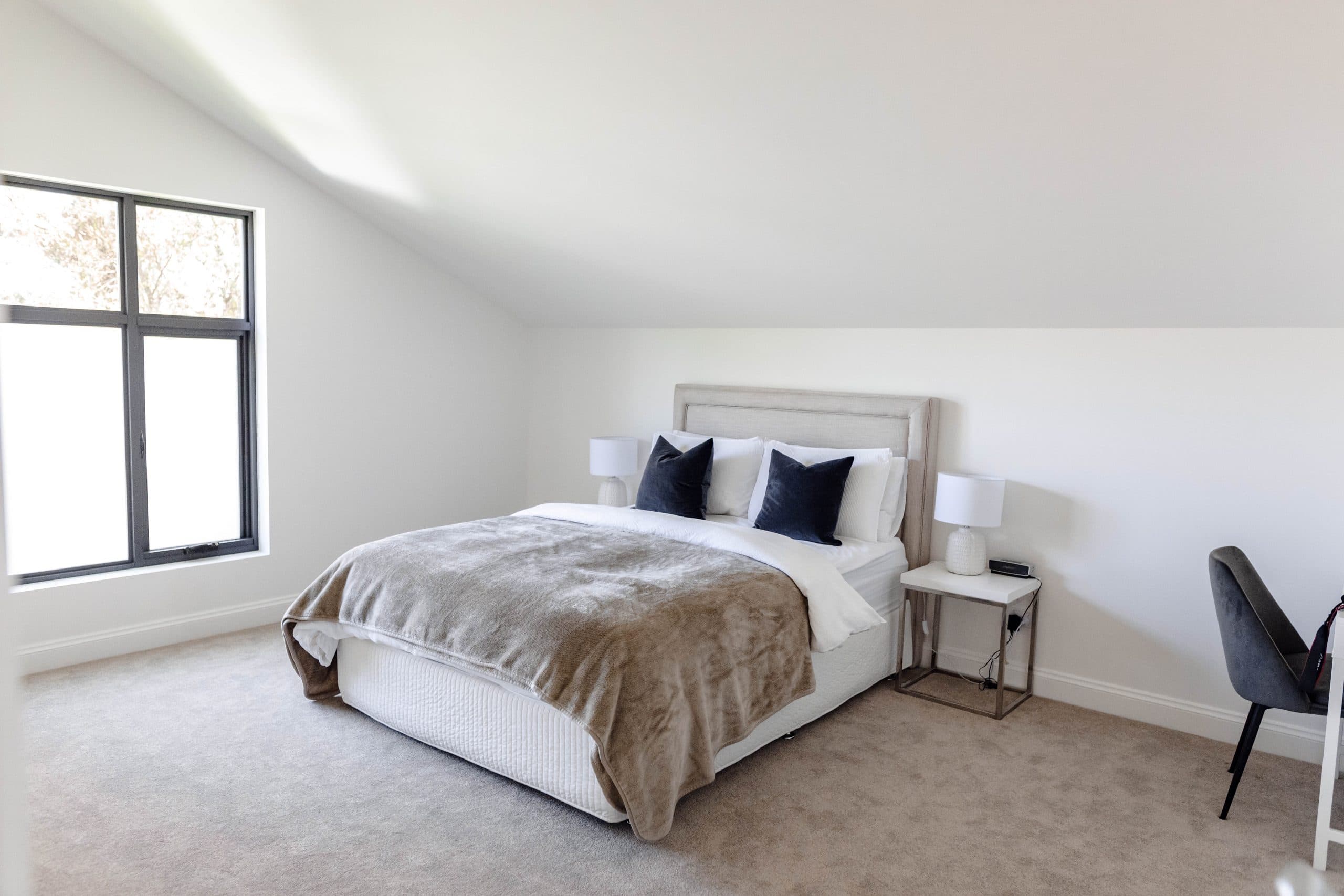

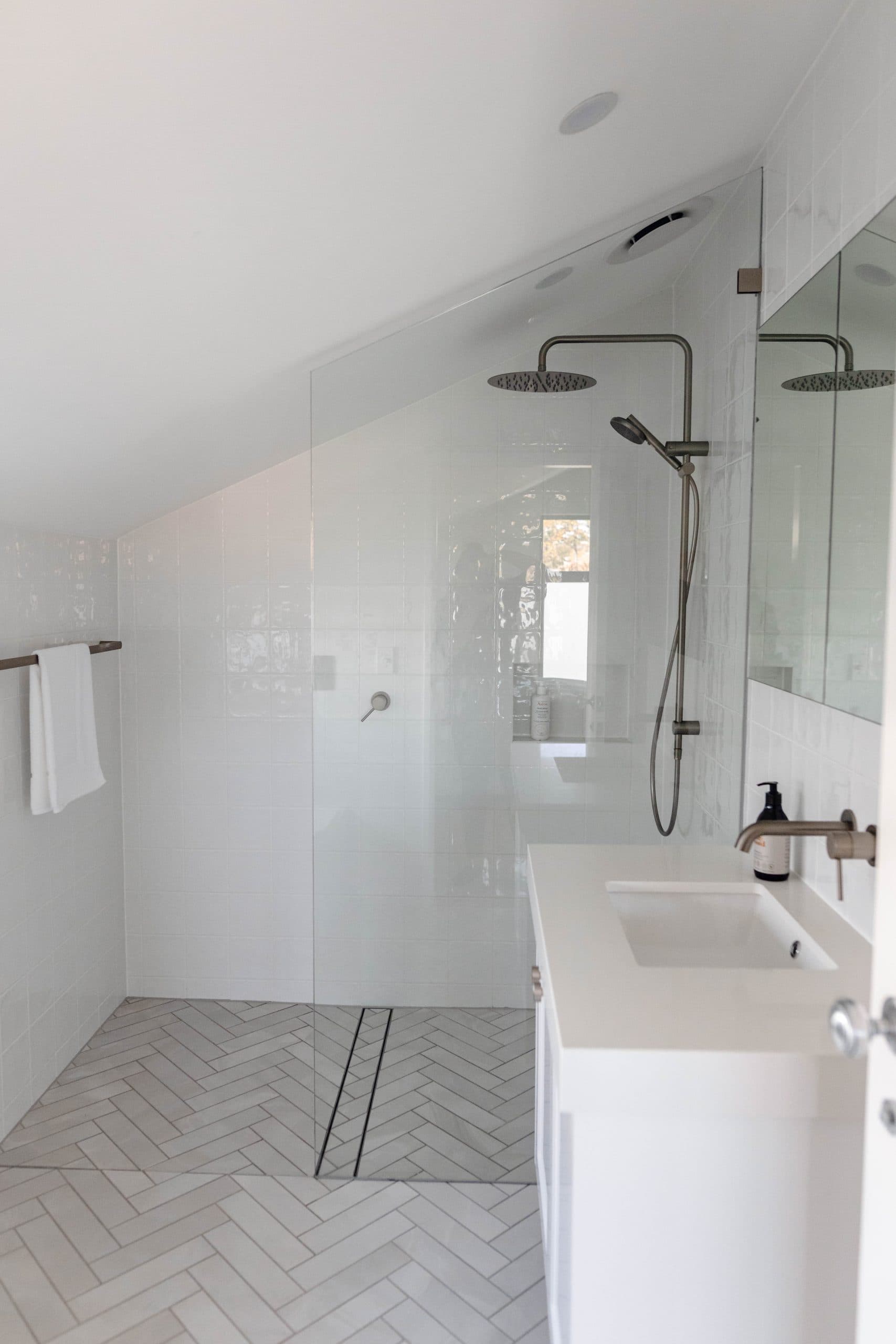

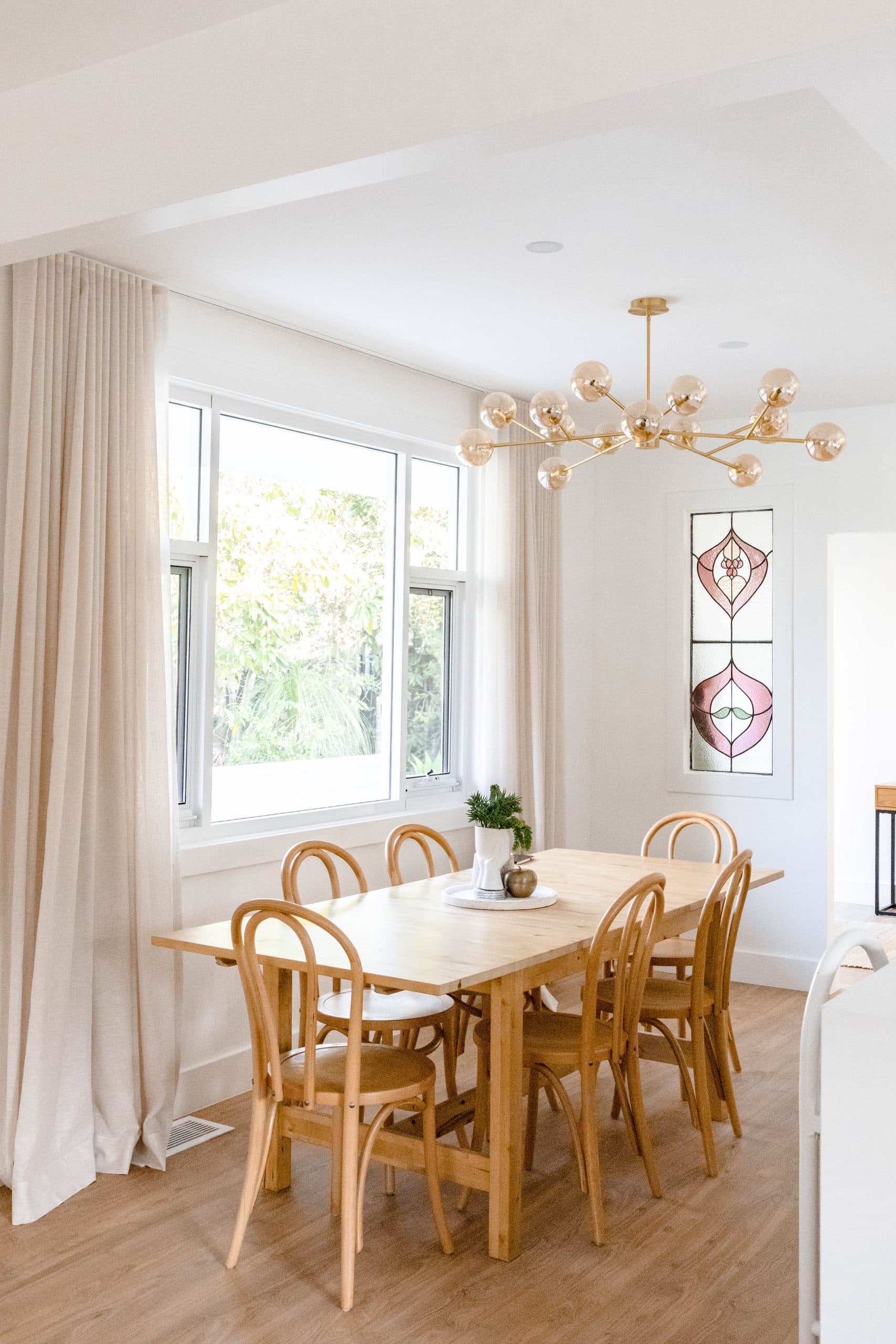

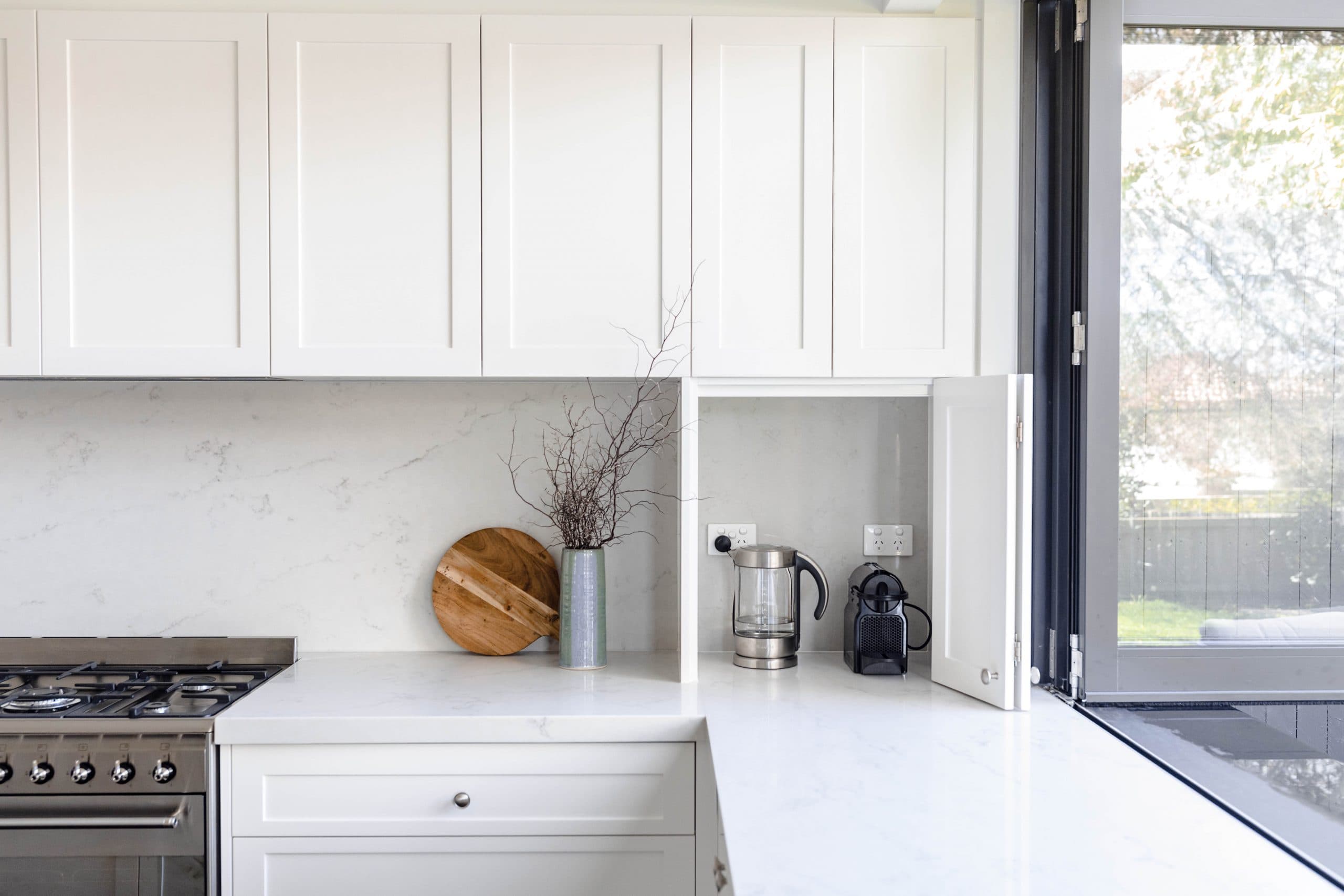

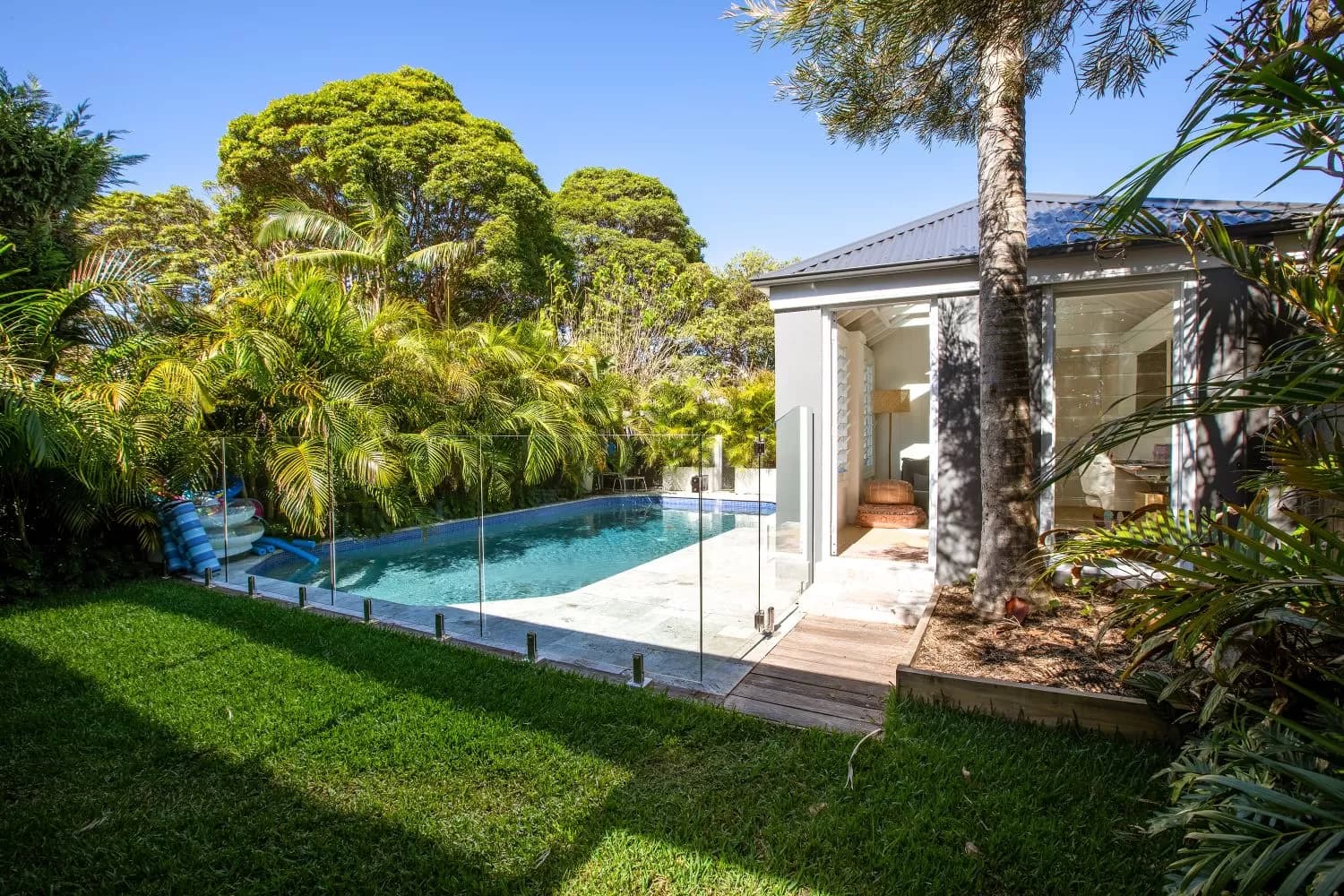

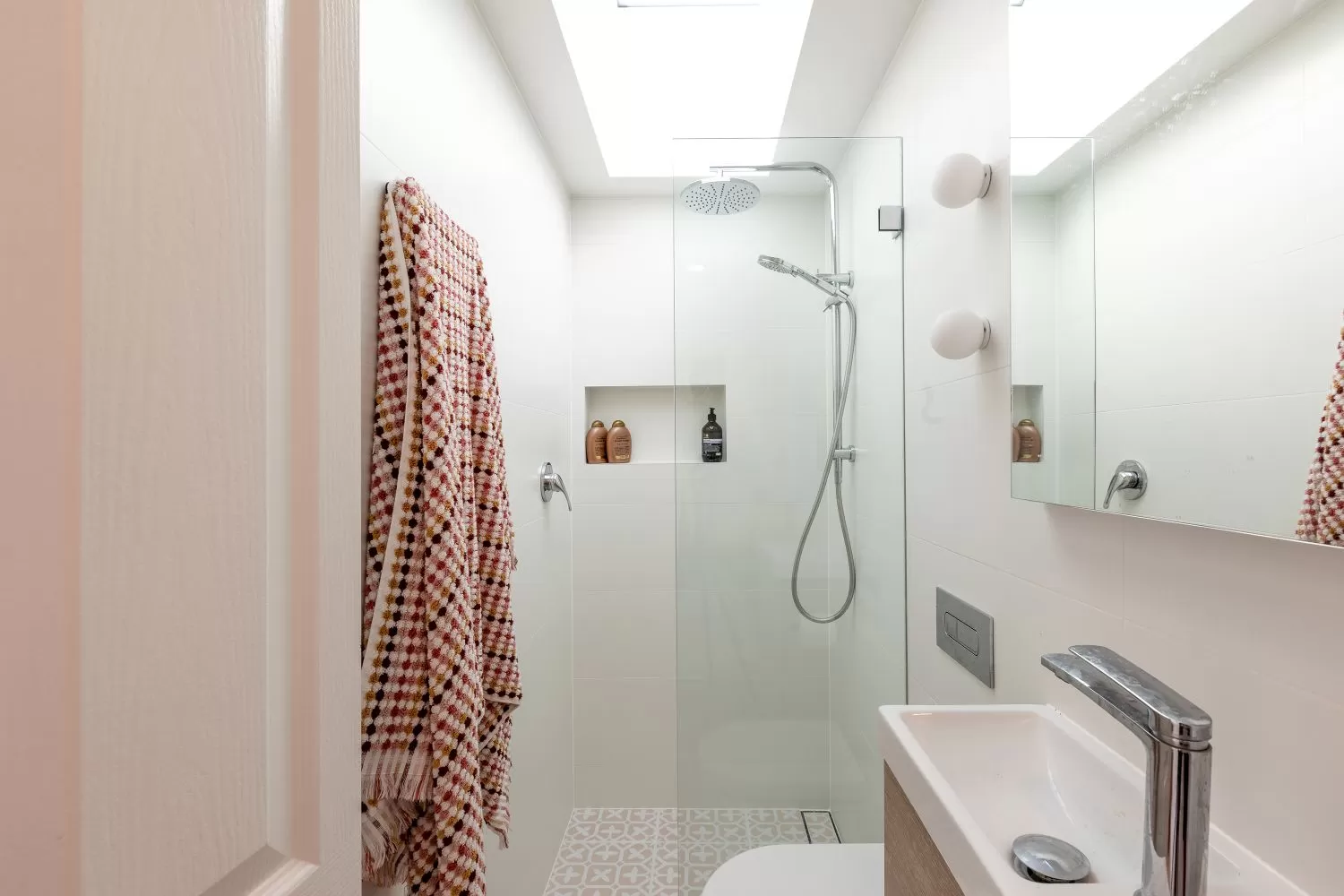

Recent Builds

We supply the residential drawings, or plans, for your development. This will typically include floorplans, elevations, sections and site plans.

Good quality plans are essential. You might be investing hundreds of thousands of dollars in your property and it’s very important that the very basis of the design and measurements are correct on your set of drawings.

We are based in Manly and service the Northern Beaches, North Shore and Sydney Metropolitan areas.

Drafting Help supply high quality plans to people who would like to save the costs of architectural services, which are significantly higher. For example, to engage an architect for a $500,000 addition to your home, an architect’s fees would be in the region of $20,000 to $30,000. If you have a good idea of your requirements, Drafting Help’s fees will be approximately $5,000 to $8,000. It’s a huge saving.

Over the years, we have seen many quotes for jobs, and the drawings, for a wide range of prices. It’s like buying a car – if you go with the very cheapest, you will likely have problems further down the track. Beware. The purpose of your plans is to achieve DA approval and they will likely also be used to obtain a construction certificate. If they are not up to standard, or contain errors, there will be repercussions later on. The council also have strict quality guidelines that drawings must follow or they will not be accepted.

You should budget between $5,000 to $7,000 for a quality set of plans for a ground floor or second storey addition. There will be additional fees for consultants such as structural engineers, private certifiers etc., as necessary. To help you budget for a second storey addition, for example, you should budget approximately $7,000 to $8,000 for drawings and approvals before you can start construction. Take a look at our drafting Packages page. You will see we start with a concept package which aims to give you an idea of how much your extension or renovation might cost.

Many builders use the calculation of 2-3k per Sqm, depending on the level of finish you require. The higher level of finish, the higher the cost per Sqm. So to get an idea of how much your building work might cost, you can start by pacing out and counting the number of square metres for your extension or renovation, and multiplying that number by $2,000 to $3,000. This will give you an approximate cost to help you budget.
